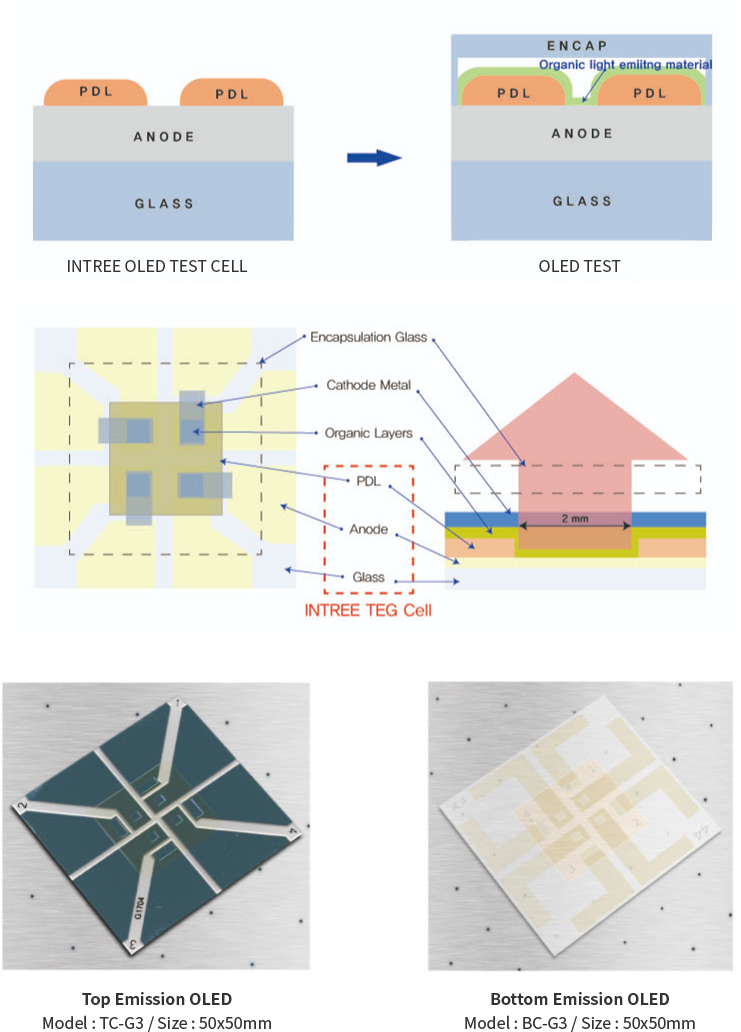

OLED TEG Cell은 발광체 합성 후 제품의 개발 및 품질관리를 위한 L-I-V, EL, Spectrum, 효율, 색좌표, 수명 등의 특성 평가 시 유기발광재료 증착 및 Encap 공정용 기판으로서, Glass 상에
Anode와 PDL 패턴이 되어진 기판입니다.
당사는 OLED TEG Cell 전문 기업으로서 2세대 기판 기반 Manual 방식 생산 라인으로, 다품종 소량생산에 최적화된 System을 구축하고, OLED Panel 업체 수준의 최상의 원재료를 사용하여
최고의 특성과 품질의 제품을 고객에게 제공합니다.
OLED TEG Cell is a substrate for deposition of organic light emitting materials and Encap process when evaluating the characteristics of L-I-V, EL, Spectrum,
Efficiency, Color coordinates and Life for the development and quality control of products after the synthesis of luminescence. It is a substrate with Anode and PDL
patterns on Glass.
As a company specializing in OLED TEG Cells, We are a second-generation substrate-based manual production line, which is optimized for small-volume production
of many varieties, and provide customers with the best characteristics and quality products by using the best raw materials at the level of OLED panel manufacturers.
구분 | Model | Glass | Anode | PDL | Specification |
---|---|---|---|---|---|
Top emission | TC-G3 | ITO1 / Ag alloy1 / ITO1 | Non-alkali glass 0.7T | PSPI | IVL, 수명 안정 |
TC-S4 | ITO1 / Ag alloy2 / ITO1 | Non-alkali glass 0.7T | PSPI | Blue 소자 효율우수 IVL, 수명 안정 | |
TC-M4 | ITO2 / Ag alloy2 / ITO2 | Non-alkali glass 0.7T | PSPI | ||
Bottom emission | BC-A3 | ITO 1500Å | Non-alkali glass 0.7T | PSPI | |
BC-B3 | ITO 1300Å | Non-alkali glass 0.5T | PSPI | ||
BC-C3 | ITO 1200Å | Non-alkali glass 0.7T | PSPI | ||
BC-D3 | ITO 1000Å | Non-alkali glass 0.5T | PSPI | ||
BC-E3 | ITO 800Å | Non-alkali glass 0.5T | PSPI | ||
BC-F3 | ITO 500Å | Non-alkali glass 0.5T | PSPI |
※ 고객사 도면 및 제품 구조에 따라 OLED TEG CELL 주문제작 가능. (필요시 INTREE 패턴 공급 가능)
OLED TEG CELL can be custom-made according to customer drawings and product structure. (INTREE pattern can be supplied if necessary)
